How Lubrication Keeps Cement Classifiers Running Smoothly ?

Abhinnay S Mittal Nimit Mittal

In cement manufacturing, classifiers are the gatekeepers of product quality — sorting fine from coarse with precision. But behind their smooth operation lies a secret weapon: effective lubrication of bearings and gears that face relentless stress and dusty, high-temperature conditions.

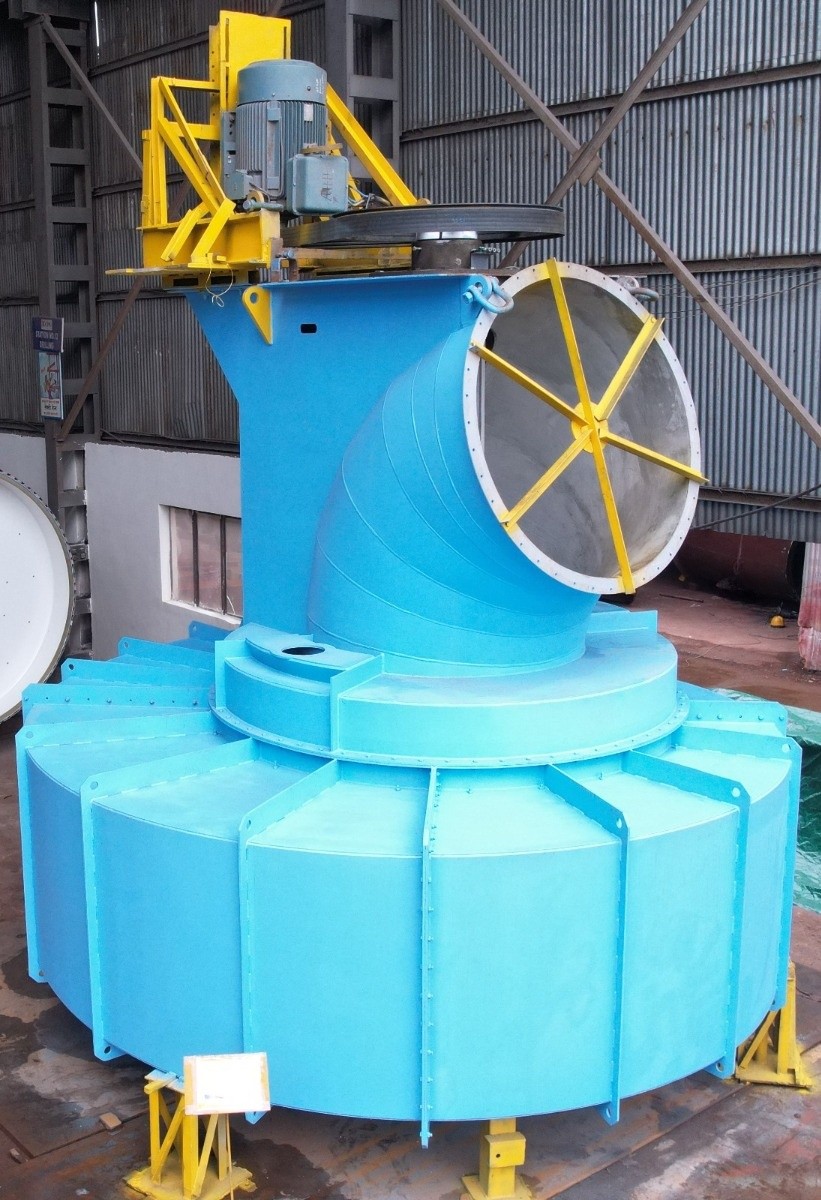

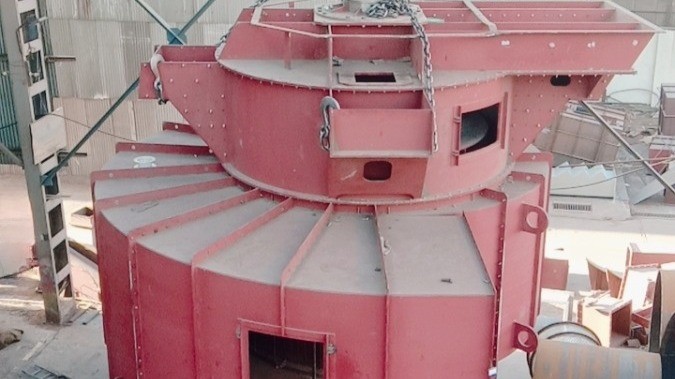

Classifier tough conditions

When Dust Meets Duty: The Lubrication Challenge

Classifiers work in tough environments where dust, heat, and constant vibration push components to their limits. Without proper lubrication, parts suffer — either drowning in excess grease or starving for it. Both extremes invite friction, wear, and costly breakdowns.

MMPGL lubrication systems offer the right solution for these tough conditions, ensuring the precise amount of lubricant reaches critical components — no more, no less — to maintain performance and reliability.

Advantages of Multiline Lubrication Systems-

Multiline lubrication systems — the smart solution that delivers just the right amount of lubricant, exactly when and where it’s needed. Multiline Lubrication - also known as MMPGL is a user friendly and cost-effective solution for centralized and automatic lubrication of a machine or an equipment having multiple points. Multiline lubricator combines multiple pumps into a single entity sharing a common reservoir and common drive.

ANSWRS Multiline Lubrication advantages-

• Each pumping unit is actuated in each cycle and thus lubricating each line independently.
• Output of each pumping unit can be adjusted independently. Output adjustment is achieved by just rotating adjusting screw.
• Lubricant of varying viscosity range can be used. Suitable for both oils (even heavy oils) and greases
• Ensures low lubricant consumption (as low as 0.1cc/min) even for continuous duty operation
• Automated operation is provided with the help of a timer to control lubricant cycle and lubricant consumption
• Multiple drive options available for pump - motorized, manual, drive from the machine to be lubricated
• High delivery pressures are obtained
• Multiline lubricator is an excellent solution for longer bearing-life and increased uptime of your machinery.
• Robust construction makes multiline lubricator suitable for a variety of applications
• ANSWRS multiline lubricator comes with host of features to choose from.

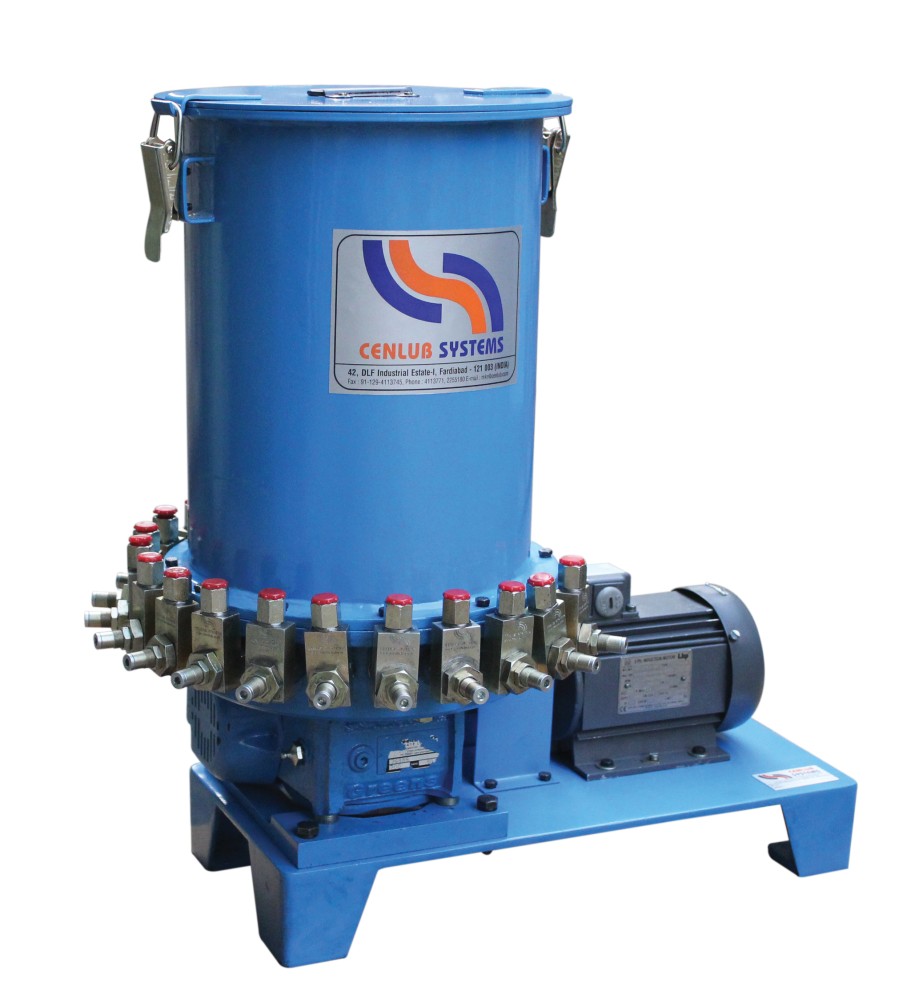

MMPGL

Special Features :

1. Positive suction - Interlocking of pumping unit with cam ensures a positive suction stroke. It ensures accurate deliveries in every stroke. It increases life, increases reliability and consistent performance compared to spring loaded pumping elements.
2. Oil resistant epoxy paint
3. Stirrer - Ensures proper suction of grease in each pumping element avoiding air-pocket formation
4. Simple design which is easy to maintain

System Variations

A multiline lubricator can be used for centralized grease lubrication of a machine having more lube points then the outlets available with the help of ANSWRS progressive blocks (distributors).

In practical scenario, there is a need to do some variations in the multiline lubricator to suit its functioning to the application. It could range from

• having more number of points than number of lines available
• output proportion is different than what is possible with adjustment in pumping unit
• lubrication feedback mechanism for complete system
• lubrication feedback for a cluster of points
• spraying of grease on open gear

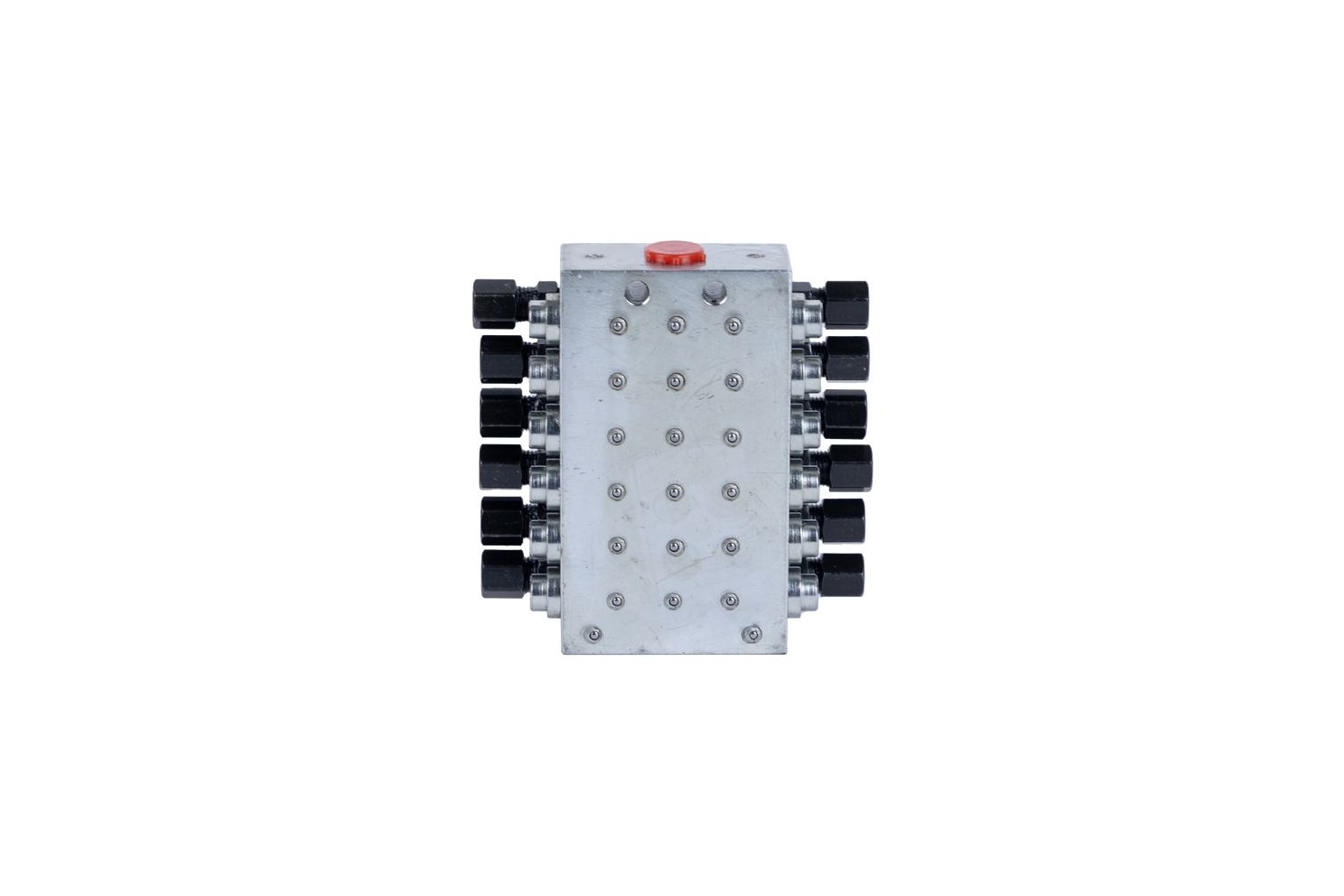

CSVP Block (Mono Type)
